Surface treatment equipment｜Black oxide alternative horizontal processing equipment
It is stable and can transport work of board thickness 50μm
The realization of uniform surface treatment by high surface accuracy
Available for FPC transport
Use
Preprocessing for laminating
To improve a bond strength at the time of the laminating by forming the organic film on the cupper surface
Specifications example
| Equipment dimension (L×W×H) | ： | 9811 × 4360 × 1400 mm |
| Board size (effective width) | ： | 610mm |
| Process liquid | ： | various chemicals maker correspondence |
| Transportation rate | ： | 0.06～2.4m/min | Pass line | ： | Operation system | ： |

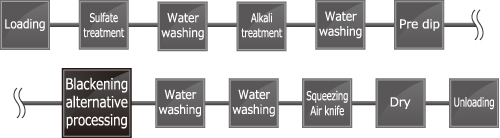

Line configuration example
*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
