Product details of Ninomiya system
PRODUCT DETAILS
Etching equipment | Etch-down equipment
The realization of distinguished surface accuracy by ideal nozzle arrangement
High surface accuracy by refined technology
To strike a balance between quality improvement and cost down by automatic preparative and chemicals control system
The realization of high-precision L/S by the densification
Use
To halve thickness of the copper foil (for fine pattern formation)
Specifications example
| Equipment dimension (L×W×H) | ： | 7936×3975×1350mm |
| Board size (effective width) | ： | 610mm |
| Process liquid | ： | various chemicals maker correspondence |
| Transportation rate | ： | 0.06～6m/min | Pass line | ： | Operation system | ： |

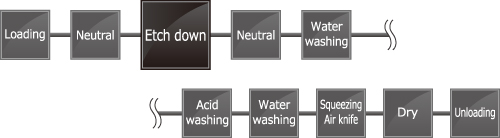

Line configuration example
*Equipment materials vary according to chemicals
*Please feel free to contact us for other special specifications
